Carbide Tipped Annular Cutter With X-Type Universal Shank

Carbide Tipped Annular Cutter With X-Type Universal Shank Featured Image
  • Carbide Tipped Annular Cutter With X-Type Universal Shank
  • Carbide Tipped Annular Cutter With X-Type Universal Shank
  • Carbide Tipped Annular Cutter With X-Type Universal Shank
  • Carbide Tipped Annular Cutter With X-Type Universal Shank
  • Carbide Tipped Annular Cutter With X-Type Universal Shank
  • Carbide Tipped Annular Cutter With X-Type Universal Shank

Short Description:

Diameter:11-65mm
Maximum cutting depth:35mm

X-35
Diameter:11-65mm
Maximum cutting depth:50mm

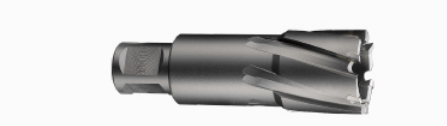

X-50
Diameter:14-65mm
Maximum cutting depth:75mm

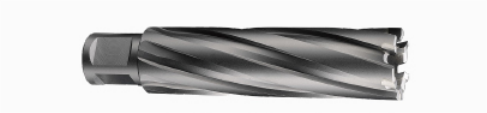

X-75
Diameter:14-65mm
Maximum cutting depth:100mm

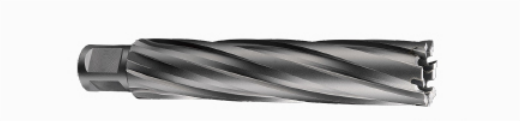

X-100
Diameter:20-65mm
Maximum cutting depth:150mm

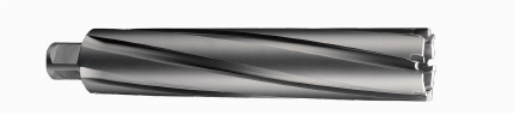

X-150
Shank:19.05mm

Material:Carbide alloy


Product Detail

Product Tags

  • Weldon shank,with more stable clamping force,better stability for drilling and better precision of holes;
  • Special carbide tips with layered and low friction cutting geometry;
  • Applicable to drilling and process of annular groove on various magnetic drilling machines and press主图通用
